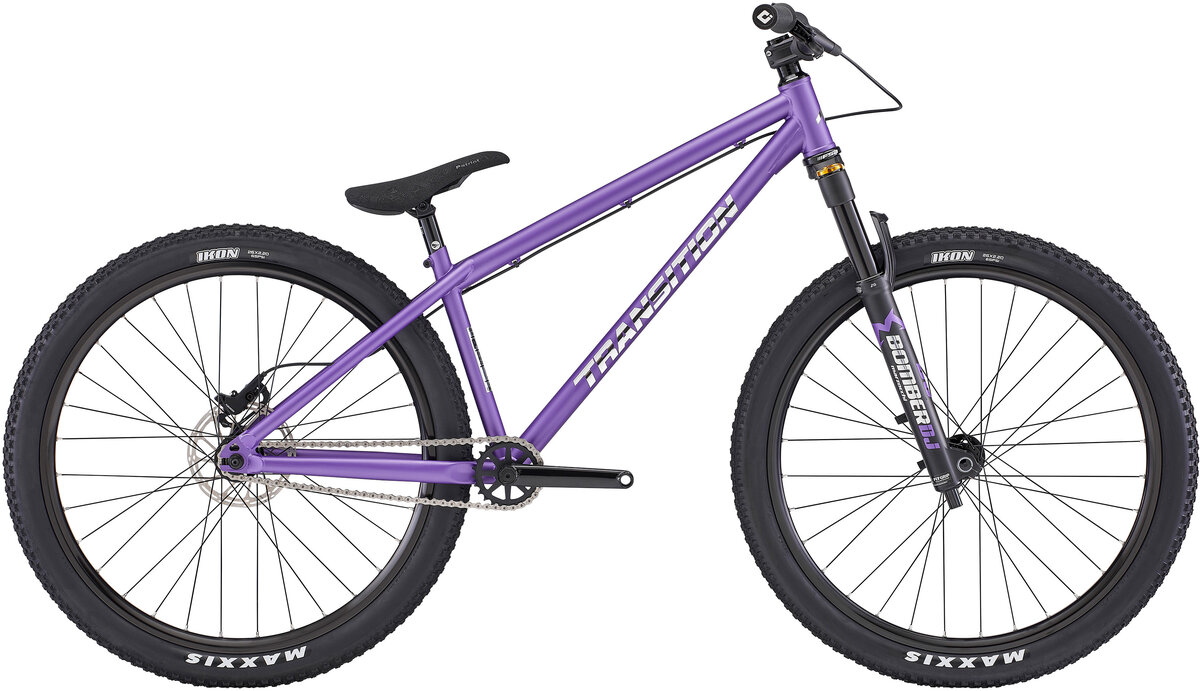

Transition PBJ
Details
The Motivational Speaker of Our Lineup
Be the best pumper, bumper and jumper you can be.
The PBJ is one of the longest standing models in our lineup, and for good reason. Unique geometry developed by our very own Lars n' Bars creates a bike that mountain bikers will immediately feel at home on. Designed with relaxed geometry that is stable at higher speeds and big jumps, yet fun and nimble enough for the tightest of pump tracks.
The PBJ will simply make you a better mountain biker and help you take your pumping, bumping and jumping skills to the next level. The X-long PBJ has a longer reach as well as a longer chainstay. This size isn't just for tall riders, it's also great for people looking to have a pump track/dirt jump bike that fits similar to their trail bike. For days when you go from the mountain straight to the neighborhood pump track, you can seamlessly transition from bike to bike without any adjustment time.
| PBJ Geometry | |||||
 |
SHORT | LONG | X-LONG | |
|
|
REACH | 415 | 440 | 465 | |
|
|||||
|
STACK | 569 | 569 | 569 | |
|
|||||
|
EFFECTIVE TT LENGTH | 600 | 625 | 650 | |
|
|||||
|
SEAT TUBE LENGTH | 338 | 338 | 338 | |
|
|||||
|
EFFECTIVE ST ANGLE | 72.0° | 72.0° | 72.0° | |
|
|||||
|
HEAD TUBE LENGTH | 110 | 110 | 110 | |
|
|||||
|
HEAD TUBE ANGLE | 68.5° | 68.5° | 68.5° | |
|
|||||
|
CHAINSTAY LENGTH | 388 | 388 | 400 | |
|
|||||
|
WHEELBASE | 1062 | 1087 | 1124 | |
|
|||||
|
BOTTOM BRACKET DROP | 20 | 20 | 20 | |
|
|||||
|
ESTIMATED BB HEIGHT | 320 | 320 | 320 | |
|
|||||
|
STANDOVER | 620 | 620 | 620 | |
|
|||||
|
FORK OFFSET | 40 | 40 | 40 | |
|
|||||
Choosing the right size PBJ for you isn't quite as straightforward as our other bikes. The right size for you is based off a combination of height and riding style.
Those who are looking for quick handling in tight spaces like a skatepark may prefer a smaller size. The same goes for riders looking to spin and perform tricks, the shorter chainstay and reach suits that riding. For those looking for stability in pump tracks, slalom and other scenarios, the longer chainstay option of the X-Long could be the ticket. If you are unsure of where to start, check out the sizing chart below.
Specs
| Frame | PBJ Chromoly Steel |
|---|---|
| Fork | Marzocchi Bomber DJ (100mm) |
| Headset | FSA No.10/7B/44 |
| Rear Shock | N/A |
| Rims/Wheels | Kinlin DDT32 |
| Hubs | Novatech D791SB-15/D256SBT |
| Spokes | Pillar 14g |
| Tires | Maxxis Ikon (2.2) |
| Crankset | Samox BMX 3-Piece Chromoly (25t/170mm) |
| Chainwheel | 25T |
| Chain | KMC K1 Wide |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Rear Cogs | 12t Single Cog |
| Shifters | N/A |
| Handlebars | Spank Spoon Short/Long(785x40mm) X-Long(785x60mm) GRIPS |
| Tape/Grips | ODI Longneck Lock-On |
| Stem | Spank Spoon (40mm) |
| Brake Levers | SRAM Level (Rear Only) |
| Brakes | SRAM Level (Rear Only) |
| Pedals | N/A |
| Saddle | SDG Patriot I-Beam |
| Seat Post | SDG I-Beam |
| Color(s) | Purple and Chrome, Matte Grey, Transparent Copper |
| Sizes | Short, Long, X-Long |
| Weight | 26.3 lbs / 11.92 kg (Size Short) |
* Subject to change without notice.
Videos
Winter Vibes with Oli P
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Purple & Chrome / Short | 01.22.11.2310 | 210000016380 |
| Purple & Chrome / Long | ||
| Purple & Chrome / X-Long | ||
| Transparent Copper / Short | ||
| Transparent Copper / Long | ||
| Transparent Copper / X-Long | ||
| Matte Grey / Short | ||
| Matte Grey / Long | ||
| Matte Grey / X-Long |
