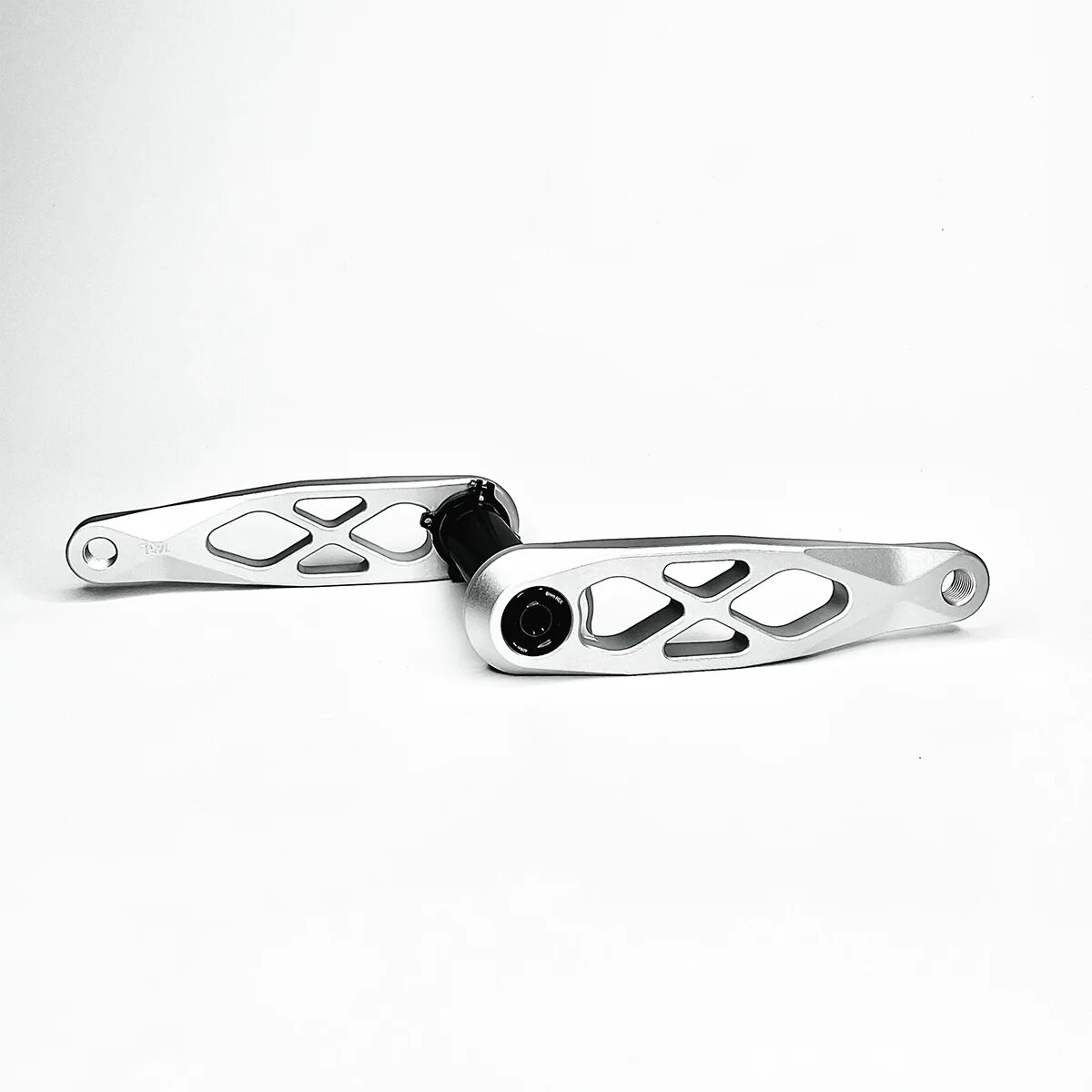

5DEV R-SPEC Trail Enduro Cranks
Details
5DEV's goal is to develop cranks that can be manufactured in a short period of time. Utilizing 5 Axis CNC machines we can produce product in days vs months or years.
These cranks are engineered for aggressive trail and enduro riding. Ideal for charging steep technical chunk, ripping laps at your local park, or sessioning your favorite jump line.
Our low profile crank arm reduces pedal strike during technical punchy climbs allowing you to clean more sections of trail and get back up to take another lap with less effort.
No excuses! Crank HARDER! Ride longer.
5DEV R-SPEC TRAIL/ENDURO Cranks
Introducing the 5DEV R-SPEC line. Designed to exceed the standard.
Podiums: 2023 US Enduro National Championships 1st / 2023 US Open DH 2nd / 2023 Crankworx DH Rotorua 2nd
Q factor: 167mm Boost | 176 SuperBoost+
Chainline: Our Standard Boost Spindle works with 52 and 55mm Chainlines.
Bottom Bracket Width: 68 - 73mm for Boost | SuperBoost Available in Select Sizes
Spindle diameters: 30mm and 29mm (need help determining what spindle size? CLICK HERE)
Lengths: 135mm, 145mm, 155mm, 160mm, 165mm, 170mm
Material: 7050 Billet Aluminum
Crank bolts: Chromoly Steel
Hardware: Self-extracting Hardware
Preloader: CNC'd 7075 Alloy
Chainring: Compatible with SRAM 3-Bolt Direct Mount Chainring Interface
Weight: 610g (165mm length 29mm spindle)
Warranty: 5 Year Warranty
Includes Chainring Mounting Hardware
Made in San Diego, California
Patent Pending
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Matte Raw / 135 / 29MM "DUB" BOOST | ||
| Matte Raw / 135 / 30MM BOOST | ||
| Matte Raw / 145 / 29MM "DUB" BOOST | ||
| Matte Raw / 145 / 30MM BOOST | ||
| Matte Raw / 155 / 29MM "DUB" BOOST | ||
| Matte Raw / 155 / 30MM BOOST | ||
| Matte Raw / 160 / 29MM "DUB" BOOST | R160-29-02 | 210000035157 |
| Matte Raw / 160 / 30MM BOOST | ||
| Matte Raw / 165 / 29MM "DUB" BOOST | 210000009143 | |
| Matte Raw / 165 / 30MM BOOST | ||
| Matte Raw / 170 / 29MM "DUB" BOOST | ||
| Matte Raw / 170 / 30MM BOOST | ||
| Matte Raw / 175 / 29MM "DUB" BOOST | ||
| Matte Raw / 175 / 30MM BOOST | ||
| Matte Black / 135 / 29MM "DUB" BOOST | ||
| Matte Black / 135 / 30MM BOOST | ||
| Matte Black / 145 / 29MM "DUB" BOOST | ||
| Matte Black / 145 / 30MM BOOST | ||
| Matte Black / 155 / 29MM "DUB" BOOST | ||
| Matte Black / 155 / 30MM BOOST | ||
| Matte Black / 160 / 29MM "DUB" BOOST | ||
| Matte Black / 160 / 30MM BOOST | ||
| Matte Black / 165 / 29MM "DUB" BOOST | ||
| Matte Black / 165 / 30MM BOOST | ||
| Matte Black / 170 / 29MM "DUB" BOOST | 210000007306 | |
| Matte Black / 170 / 30MM BOOST | ||
| Matte Black / 175 / 29MM "DUB" BOOST | ||
| Matte Black / 175 / 30MM BOOST |
