The Pine Mountain is a classic steel hardtail with modern trail capabilities for hardtail purists pushing the limits and seeking adventure.
STEEL IS REAL
The Pine Mountain 1 uses a butted and formed Series 2 4130 CrMo frame with Boost 141mm dropouts, full fender and rack mounts, and tons of bosses for a wide variety of gear mounting options.
The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The new Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting lights, phones, cycle computers, or whatever else catches your fancy.

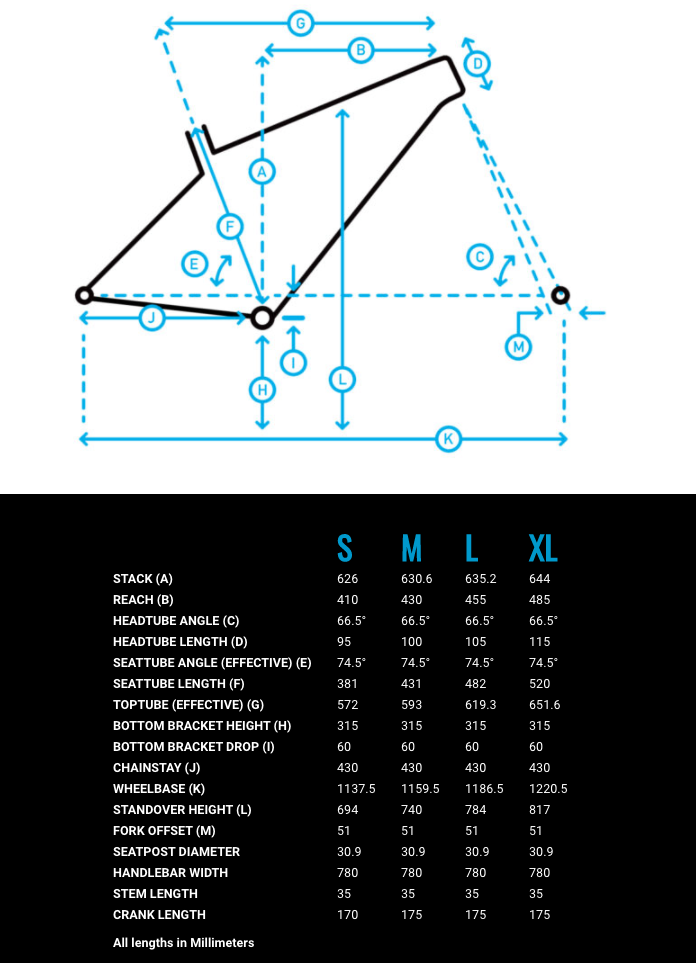

The Pine Mountain Trail Geometry is a mix of agility for trail riding and all-day comfort for bikepacking. Short chainstays keep a shorter wheelbase for that active ride, while a 66.5-degree head angle makes for confident steering with or without the weight of gear.
TUBELESS READY 29"
Tubeless-ready 32mm internal dimension rims and 2.6” tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip single track.
|Frame||Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts|
|Fork||RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset|
|Headset||FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"|
|Rims/Wheels||Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible|
Front: Forged Alloy, 110x15mm, 6-Bolt Disc, 32H
Rear: Forged Alloy, 141x9mm, 6-Bolt Disc, 32H
|Spokes||14g Black Stainless Steel|
|Tires||Vee Tire Flow Snap, 29x2.6", Wire Bead|
|Crankset||Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow-Wide Chainring, 76mm BCD|
|Bottom Bracket||External Sealed Cartridge Bearings|
|Rear Derailleur||Shimano Deore Shadow Plus SGS|
|Cassette/Rear Cogs||SunRace 11-Speed, 11-46T|
|Handlebars||Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep|
|Tape/Grips||Marin BearPaw Locking|
|Stem||Marin 3D Forged Alloy, 35mm|
|Brake Levers||Shimano MT400 Hydraulic|
Front: Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
Rear: Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
|Saddle||Marin Pine Mountain Trail|
|Seat Post||Marin Alloy, 30.9mm|
* Subject to change without notice.
|Gloss Navy Blue/Yellow/Orange / Small||843346103437||730120001||210000004829|
